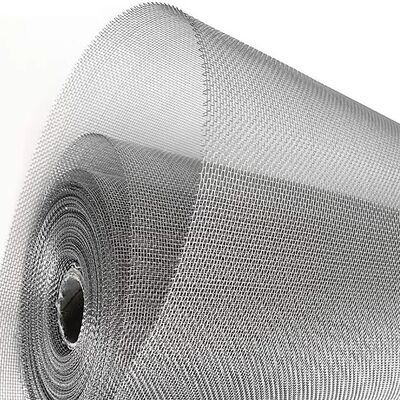

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing

  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
Lugar de origen Anping de China
Nombre de la marca QIANPU
Certificación ISO
Cantidad de orden mínima 5 rollos
Precio negotiable
Detalles de empaquetado Dentro con de un tubo de papel, exterior con la película plástica o el papel impermeable, entonces e
Tiempo de entrega UNA SEMANA
Condiciones de pago T/T, Western Union, carta de crédito
Datos del producto
Material SS304, SS304L, SS316, SS316L Tipo de tejido Tejido liso / Tejido de sarga / Tejido holandés
Diámetro del alambre 0,15 mm - 2,0 mm Conteo de malla 2 – malla 400
tamaño de apertura 0,038 mm – 10 mm Tratamiento superficial Pasivación recocida/decapada brillante
Tamaño estándar Rollo de 1m×30m (personalizable) Solicitud Filtración de alimentos y bebidas, tamizado farmacéutico, filtro industrial, cercas de construcción,
Resaltar

food grade stainless steel wire mesh

,

304/316 stainless steel filtration mesh

,

woven wire mesh for fencing
Deja un mensaje
Descripción de producto

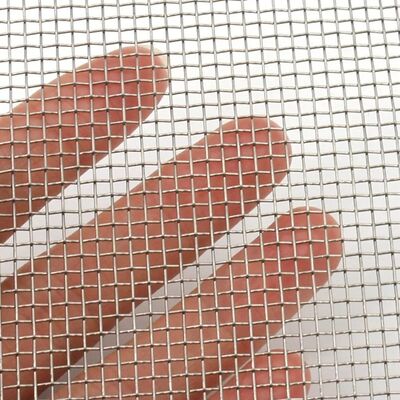

Plain Dutch Weave has a specialized structure with larger warp wires than weft wires. It is woven by interlacing a few warp wires with tightly packed weft wires, forming a dense mesh with invisible apertures. Its plain pattern ensures even wire distribution, resulting in a smooth, easy-to-clean surface.
Twill Dutch Weave has an upgraded structure, also with larger warp wires than weft wires. Tightly packed weft wires are woven in a twill pattern (each weft passes over two warp wires and under one, or vice versa), creating a dense mesh with subtle diagonal textures, enhanced rigidity and wear resistance.

- *Material*: SS304 / SS304L / SS316 / SS316L
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 0



Main Applications
Our stainless steel woven wire mesh is widely used in:
- *Food & Beverage*: Bakery equipment, beverage filtration, food processing machinery
- *Pharmaceutical*: Medicine sieving, clean room filtration, pharmaceutical machinery components
- *Construction*: Concrete reinforcement, building facades, security window guards
- *Industrial & Security*: Machine guards, liquid filtration, mine sieving, pet enclosures

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 1Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 2

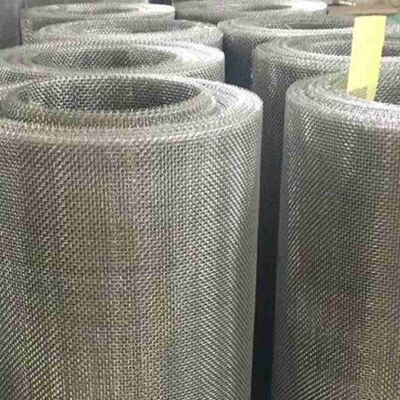

Packing:

In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 3
