Stainless Steel Woven Wire Mesh with 10Mesh

  • Stainless Steel Woven Wire Mesh with 10Mesh
Lugar de origen Porcelana
Cantidad de orden mínima 1 rollo
Precio Based on quantity
Detalles de empaquetado Dentro con de un tubo de papel, exterior con la película plástica o el papel impermeable, entonces e
Tiempo de entrega UNA SEMANA
Condiciones de pago T/T
Datos del producto
Material Acero inoxidable Tamaño 1mx30m
número de malla 10mesh
Deja un mensaje
Descripción de producto

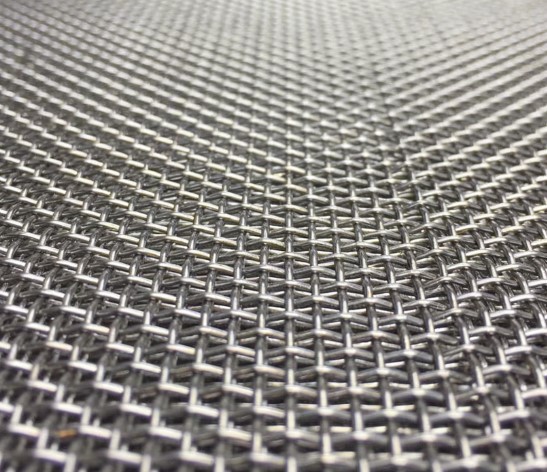

Stainless Steel Woven Wire Mesh with 10Mesh
High-Fidelity Sieving & Filtration for Critical Applications

10 mesh stainless steel woven wire mesh is a high-precision, heavy-duty product designed for fine particle classification, liquid-solid separation, and protective barrier use across industries where accuracy and reliability are paramount. Fabricated from virgin 304, 316, or 316Ti stainless steel, this mesh undergoes a precision weaving process and post-production annealing to eliminate internal stress, ensuring dimensional stability even under extreme temperature and pressure fluctuations.
Key Specifications
Mesh Count 10 openings per linear inch
Aperture Size 2.0mm ± 0.03mm (tight tolerance for consistent screening)
Wire Diameter Range 0.3mm-0.75mm (customizable for flow rate vs. strength balance)
Material Options 304 Grade: Cost-effective, food-grade safe for dry/wet processing environments
316/316Ti Grade: Superior resistance to chloride corrosion, ideal for marine and chemical industries
Supply Forms Custom-cut sheets (max 3m width), continuous rolls (10m-50m length), or pre-fabricated frames
Weave Variants Plain weave (uniform aperture for general use) / Dutch weave (enhanced filtration efficiency for fine particles)
Core Selling Points
  • Tight Aperture Tolerance: Computer-controlled weaving ensures minimal size variation, preventing particle leakage and improving product quality consistency.
  • Stress-Free Structure: Annealing treatment eliminates weaving-induced stress, avoiding mesh deformation during installation or long-term use.
  • Low Maintenance Cost: Smooth stainless steel surface resists clogging, scaling, and bacterial adhesion; can be cleaned with water or mild detergents without damage.
  • Broad Temperature Adaptability: Operates stably in temperatures ranging from -200°C to 600°C, suitable for cryogenic storage and high-temperature processing scenarios.
Target Applications
  • Fine grading of ceramic powders, pigments, and pharmaceutical raw materials
  • Filtration of wine, beer, and herbal extracts in beverage and pharmaceutical industries
  • Protective mesh for chemical reactor vents, oil pipeline filters, and marine engine guards
  • Seed sorting and grain cleaning in precision agriculture
  • Laboratory particle size analysis and sieve stack assembly
