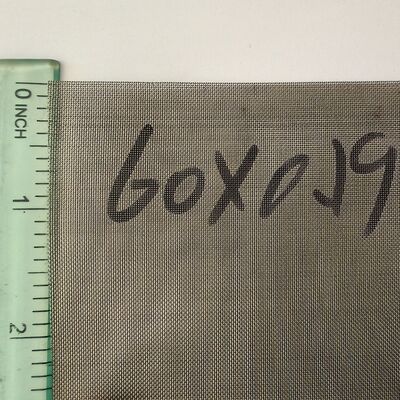

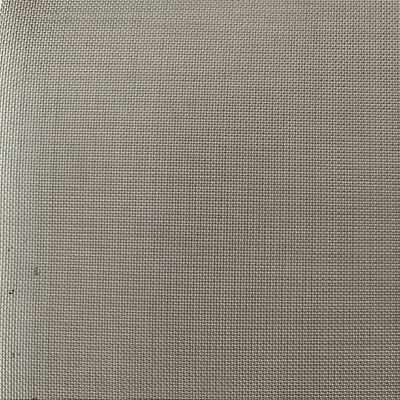

60Mesh 0.19mm AISI 304 Stainless Steel Plain Weave Far Superior Corrosion Resistance & Longevity
| Lugar de origen | Hengshui, China |
|---|---|
| Nombre de la marca | QIANPU |
| Cantidad de orden mínima | 1 rollo |
| Precio | Negotiable according to quantity of order |
| Detalles de empaquetado | 1. el tubo interior del cartón del uso para el caso/el cartón de madera plásticos del uso bags+woode |
| Tiempo de entrega | 2 semanas |
| Capacidad de la fuente | 3000 rollos por mes |
Datos del producto
| Nombre del producto | Malla de alambre holandesa de acero inoxidable | Material | Acero inoxidable |
|---|---|---|---|
| Malada de malla | 60 mallas por pulgada | Ancho | 1.2 m,1.5m o personalizado |
| Longitud | 30m o personalizado | Técnica | tejido |
| Color | Plata brillante | Diámetro del alambre | 0.19 mm |
| Características | Resistencia a la corrosión y longevidad muy superiores | Solicitud | filtración |
| Resaltar | 60Mesh stainless steel wire mesh,AISI 304 plain weave mesh,corrosion resistant SS woven mesh |
||
Descripción de producto
60Mesh 0.19mm AISI 304 Stainless Steel Plain Weave Far Superior Corrosion Resistance & Longevity
Product Introduction
This 60Mesh 0.19mm 304 Plain Weave mesh is a general-purpose, high-precision filtration medium offering an optimal balance of open area, strength, and corrosion resistance for industrial and food-grade applications.
Product Specifications
|
Item |
Specification |
|
Mesh Count |
60 Mesh (60 openings per linear inch) |
|
Wire Diameter |
0.19 mm (±0.01 mm tolerance) |
|
Material |
Stainless Steel SS304 (standard); SS316/316L (optional for harsh environment) |
|
Weave Type |
Plain Weave (Standard square weave, warp and weft wires of equal diameter, alternating over-under) |
|
Open Area |
Approx. 27–28% |
|
Sheet Size |
1m×2m, 1.22m×2.44m (standard); Custom size available |
|
Roll Size |
1m/1.22m width, 30m/50m length (customizable) |
|
Surface Treatment |
Polished, Annealed (smooth surface, no burrs) |
Material Properties (AISI 304)
Corrosion Resistance: Excellent resistance to atmospheric corrosion, mild acids, alkalis, and oxidizing environments.
Temperature Resistance: Heat resistant up to 800°C (1472°F).
Hygienic: Non-toxic, non-magnetic, easy to clean, suitable for food & beverage contact.
Mechanical Strength: High tensile strength, good ductility, and wear resistance.
Surface: Bright, smooth finish; no further treatment required.
Product Features
Precise Uniformity: Consistent, square openings for accurate filtration/sieving.
Structural Stability: Flat, rigid, non-raveling edges when cut.
Durability: Long service life under cyclic stress and abrasion.
Versatility: Easily cut, formed, or fabricated into filters, discs, or sleeves.
Cleanability: Smooth surface resists clogging; washable and reusable.
Advantages Over Alternatives
vs. Galvanized Steel: Far superior corrosion resistance & longevity.
vs. 201 SS: Better chemical resistance & weldability; suitable for food contact.
vs. 316 SS: Cost-effective for non-marine/chloride environments.
vs. Welded Mesh: Smoother surface, finer openings, higher precision.
Usages
Filtration:
Liquid filtration: Water, oils, chemicals, pharmaceuticals, beverages.
Gas/air filtration: Exhaust systems, dust collection, HVAC.
Particle separation: 25–30 μm filtration efficiency.
Industrial Sieving:
Fine powder classification (chemicals, cosmetics, pigments).
Food processing: Sugar, flour, spices, coffee beans.
Engineering & Protection:
Plastic extrusion screens, fiber filtration.
Vent guards, safety screens, EMI/RFI shielding.
Petrochemical: Mud screens, pickling nets.
Ordering Information
Standard Widths: 0.5 m, 1.0 m, 1.2 m, 1.5 m.
Standard Lengths: 30 m rolls; custom lengths available.
Edge Treatment: Selvaged (factory edge) or cut edge.
Customization: Slitted strips, discs, welded filters, and frames available.
FAQ
• Q: What is the lead time for bulk orders? A: For standard products, lead time is 3-7 working days; for customized products, lead time is 7-15 working days, depending on order quantity.
• Q: Can you provide certification? A: Yes, we can provide ISO, SGS, FDA certifications (for food-grade products) to meet your import and export needs.
• Q: What is the payment term? A: T/T, L/C, Western Union, PayPal, etc., flexible payment terms can be negotiated.
If you are interested in our 18Mesh 0.50mm Stainless Steel Wire Mesh, please contact us for detailed quotation, product specifications and free samples. We look forward to establishing long-term cooperative relationships with you!
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
