20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy

  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
Lugar de origen Hengshui, China
Nombre de la marca QIANPU
Cantidad de orden mínima 1 rollo
Precio Negotiable according to quantity of order
Detalles de empaquetado 1. el tubo interior del cartón del uso para el caso/el cartón de madera plásticos del uso bags+woode
Tiempo de entrega 2 semanas
Capacidad de la fuente 3000 rollos por mes
Datos del producto
Nombre del producto Malla de alambre holandesa de acero inoxidable Material Acero inoxidable 316
Malada de malla 20 por 20 Ancho 1.2 m,1.5m o personalizado
Longitud 30m o personalizado Técnica tejido
Color Plata brillante Diámetro del alambre 0,50 mm x 0,50 mm
Características Para filtrado estable y precisión de filtración Solicitud filtración
Resaltar

20Mesh stainless steel wire mesh

,

SS316 plain weave wire mesh

,

0.50mm filtration wire mesh
Deja un mensaje
Descripción de producto

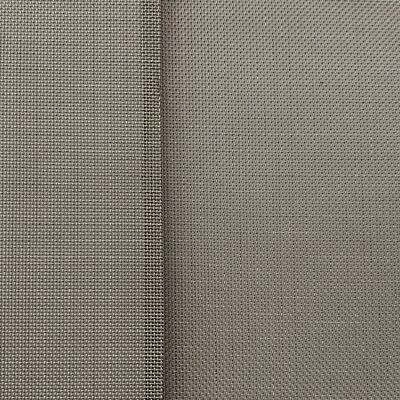

20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy



Product Introduction



1. Basic Parameters


  • Mesh: 20 Mesh (20 openings per linear inch)
  • Wire Diameter: 0.5 mm
  • Material: SS316 (AISI 316 / 1.4401) stainless steel
  • Weave Type: Plain Weave
  • Nominal Aperture: Approx. 0.77 mm
  • Open Area: Approx. 36.8%


2. Material Performance


  • Excellent corrosion resistance: Superior to 304, with strong resistance to chloride, seawater, acid, alkali and chemical corrosion.
  • High temperature & oxidation resistance: Stable performance in high-temperature and harsh environments.
  • Hygienic & non-toxic: Suitable for food, pharmaceutical, seawater treatment and sanitary working conditions.
  • High strength & durability: Good rigidity, wear resistance, long service life, not easy to deform.


3. Product Features


  • Uniform square mesh openings, stable screening and filtration accuracy.
  • Thick wire diameter ensures high tensile strength and impact resistance.
  • Smooth surface, not easy to hang material, easy to clean and reuse.
  • Good structural stability, firm weaving, not easy to loose or damage.
  • Can be cut, punched, welded and deep processed into various mesh parts.


4. Typical Applications


  • Filtration & separation: Coarse filtration of industrial liquids, oils, chemical solutions, sewage treatment.
  • Screening & grading: Granular materials, plastic pellets, food particles, powder classification.
  • Marine & coastal facilities: Seawater filtration, marine equipment protective mesh, coastal ventilation mesh.
  • Industrial protection: Safety guard mesh, particle isolation, exhaust gas pretreatment filtration.
  • Machinery & equipment: Plastic extruder screens, filter discs, protective covers.


5. Product Advantage


This 20Mesh 0.5mm 316 plain weave wire mesh combines moderate opening size with strong structural strength and excellent corrosion resistance, making it widely used in industrial screening, coarse filtration and harsh environment protection, especially suitable for occasions requiring both strength and corrosion resistance.





20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy 0



Plain Weave

Mesh Wire D Aperture L Open
openings/inch mm inch mm inch %
3 1.60 0.0629 6.866 0.2703 65.77
3 0.70 0.0275 7.766 0.3057 84.14
4 1.20 0.0472 5.15 0.2027 65.77
4 0.60 0.0236 5.75 0.2263 81.99
5 1.00 0.0393 4.08 0.1606 64.50
5 0.50 0.0196 4.58 0.1803 81.28
6 0.90 0.0354 3.333 0.1312 62.00
6 0.50 0.0196 3.733 0.1469 77.77
8 0.90 0.0354 2.275 0.0895 51.34
8 0.50 0.0196 2675 0.1053 70.98
10 0.90 0.0354 1.640 0.0645 41.68
12 0.80 0.0314 1.316 0.0518 38.69
14 0.70 0.0275 1.114 0.0438 37.72
16 0.60 0.0236 0.987 0.0388 38.69
18 0.50 0.0196 0.911 0.0358 41.68
20 0.50 0.0196 0.770 0.0303 36.75
30 0.35 0.0137 0.496 0.0195 34.41
40 0.30 0.0118 0.335 0.0131 27.83
50 0.25 0.0098 0.258 0.0101 25.79
60 0.23 0.0090 0.193 0.0076 20.85
80 0.13 0.0051 0.187 0.0073 34.87
100 0.10 0.0039 0.154 0.0060 36.75
100 0.08 0.0031 0.174 0.0068 46.92
120 0.09 0.0035 0.121 0.0047 33.03
120 0.08 0.0031 0.131 0.0051 38.69
120 0.07 0.0027 0.141 0.0055 44.79
120 0.06 0.0023 0.151 0.0059 51.34
120 0.05 0.0019 0.161 0.0063 58.33
150 0.06 0.0023 0.109 0.0043 41.68
150 0.065 0.0025 0.104 0.0041 37.96
165 0.063 0.0024 0.090 0.0035 34.89
165 0.06 0.0023 0.093 0.0036 37.23
165 0.05 0.0019 0.103 0.0040 45.58
180 0.05 0.0019 0.091 0.0035 41.68
200 0.05 0.0019 0.077 0.0030 36.75
200 0.04 0.0015 0.087 0.0034 46.93
250 0.04 0.0015 0.061 0.0024 36.75
300 0.04 0.0015 0.044 0.0017 27.83



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
